| 参照: | IEC60529、IEC61032、UL507、UL1278 | 製品名: | IECテストフィンガー |
|---|---|---|---|
| 材料: | 鋼鉄およびプラスチック | リードタイム: | 在庫あり |
| ハイライト: | 0~50N Force Test Finger Probe,IP2X Testing IEC Test Finger,Long Lifespan Unjointed Test Finger |
||

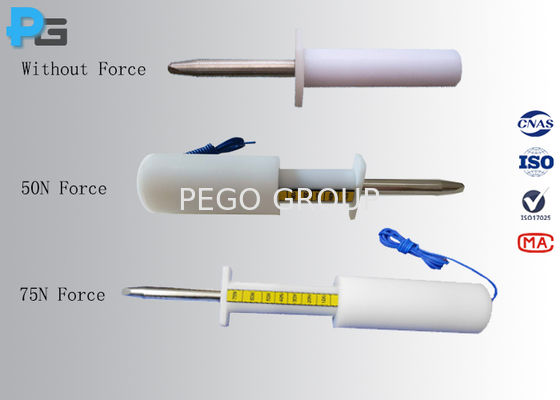

IEC61032 Standard Test Finger Probe and Unjointed Test Finger in Stock Can Be with Thruster
The standard test finger probe and unjointed test finger are designed according to IEC61032 standard. The standard test finger probe verifies basic protection against access to hazardous parts and protection against finger access. The Unjointed test finger probe verifies protection against hazardous part access and mechanical strength of enclosure openings. Both probes can be customized with thruster and pass calibration tests.
Designed according to IEC61032 figure 2, meeting requirements of UL507, UL1278 figure 8 and EN60529 figure 2. The Standard Test Finger Probe with 50N force is for IP2X testing, protecting fingers from hazard parts.
| Specification | Value |
|---|---|
| Diameter of dactylogryposis: | 12mm |
| Length of dactylogryposis: | 80mm |
| Diameter of baffle: | 50mm |
| Length of baffle: | 100mm |
| Thruster (optional) | 50N |
| Material: | Insulating material (baffle and handle), metal (dactylogryposis) |
Designed according to IEC61032 figure 7 and UL clauses.
| Parameter | Value |
|---|---|
| Diameter of test finger | 12mm |
| Length of test finger | 80mm |
| Diameter of baffle | 50mm |
| Thickness of baffle: | 5mm |
| Strength range | 10N, 20N, 30N, 40N, 50N |
| Material | Insulating material, metal |
Pego Tester (Jiangxi), founded by PEGO GROUP in 2011, is a professional high-tech enterprise specializing in developing, marketing, and servicing electronic test equipment. Our product range includes:
We maintain several production lines in China, utilizing advanced technology and machines to ensure high precision. Our products feature world-famous-brand components for reliability. We offer short lead times and can provide third-lab calibration certificates upon request.
Pego products are used worldwide in labs, production lines, QC, and R&D departments, known for their high precision, simple operation, human-centered design, and excellent performance.
Our motto: "To provide better user experience with better quality and better price." As test requirements grow, PEGO aims to grow with our users and develop better test solutions.
