| 標準: | IEC60851-3 | スクレーパ径: | (0.23±0.01)mm |
|---|---|---|---|
| 掻き取り装置の掻き取り速度: | (400±40)mm/分 | 試験電圧: | DC(6.5±0.5)V |
| 短絡電流: | (20±0.5)mA | 電源: | AC 220V±10％、50Hz |
| ハイライト: | IEC60851-3 Standard Enamelled Round Wire Abrasion Resistance Test Apparatus,DC (6.5±0.5)V Test Voltage Abrasion Resistance Test Apparatus,Automatically Rotating Sample Enamelled Wire Test Apparatus |
||

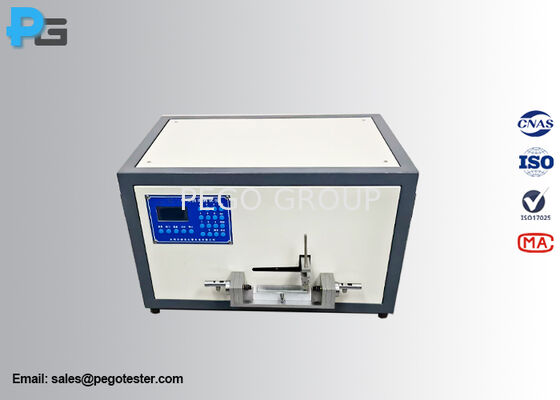

IEC60851-3 Enamelled Round Wire Abrasion Resistance Test Apparatus The enamelled round wire abrasion resistance test apparatus is designed according to IEC60851-3 clause 7 figure 1 and figure 2 and GB/T4074.3 clause 5.2. This equipment is used to test the abrasion resistance of the enamel film on round enameled wires with a nominal conductor diameter over 0.250 mm. Test Principle A straight piece of wire is subjected to a unidirectional scrape test by a needle to which a
